Redefining LED Performance for Professional Events
The AlphaRail Difference
One Precision Instrument.
Two Distinct Applications.
Whether you need a workhorse for permanent integration or a fully customized
signature piece, the AlphaRail platform provides the same exceptional visual impact. The
only difference is how you choose to deploy it.

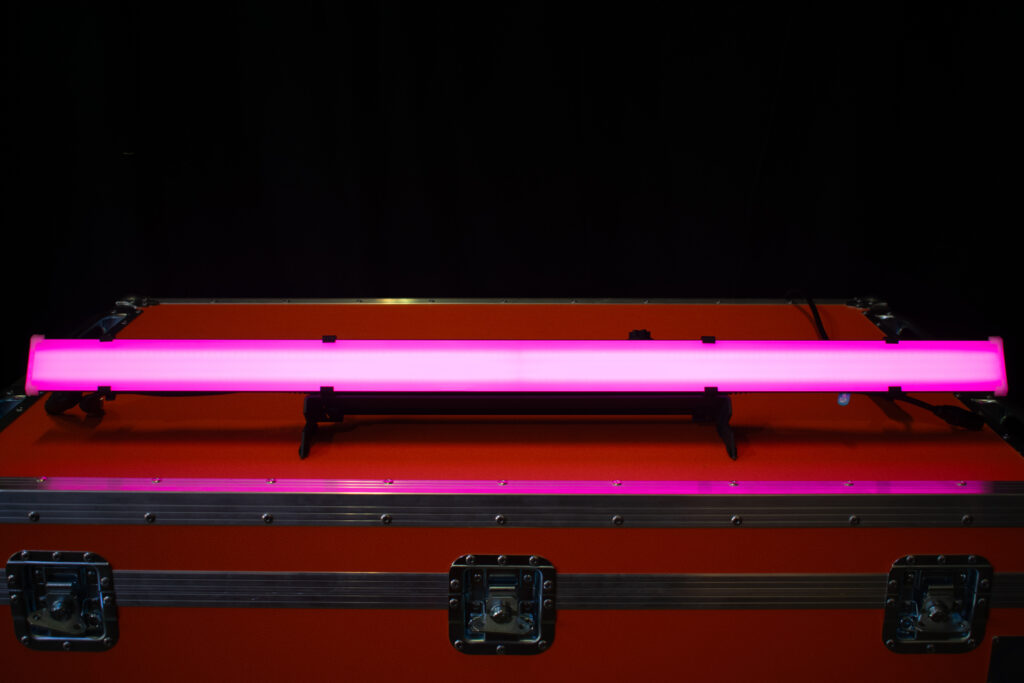

Three high-density LightRails, with a pixel pitch of 6.9 mm and a total of 144 RGB
LightUnits, are precisley aligned within a compact 1-meter profile. Combined with a
specialized diffusion panel, this architecture creates the distinctive light output that
defines the AlphaRail Signature.
Key Highlights
- Vivid Imaging
1.67 million vibrant colors with multiple DMX modes (3-channel to HiRes Single-Pixel) for ultimate control. - Interchangeable Diffusor
Always in sight or hidden in the shadows. Your Choice! Additionally, the diffuser panel can be customized with a unique application to feature logos, text, or branding elements for a personalized touch. - Versatile Control
Fully manageable via DMX, RDM, network, or our dedicated Web-App,
the Alpha ControlSuite. - Built to Last
Housed in an 2.3 kg, ultra-lightweight aluminum chassis with fanless convection cooling for silent, maintenance-free operation. - Effortless Rigging

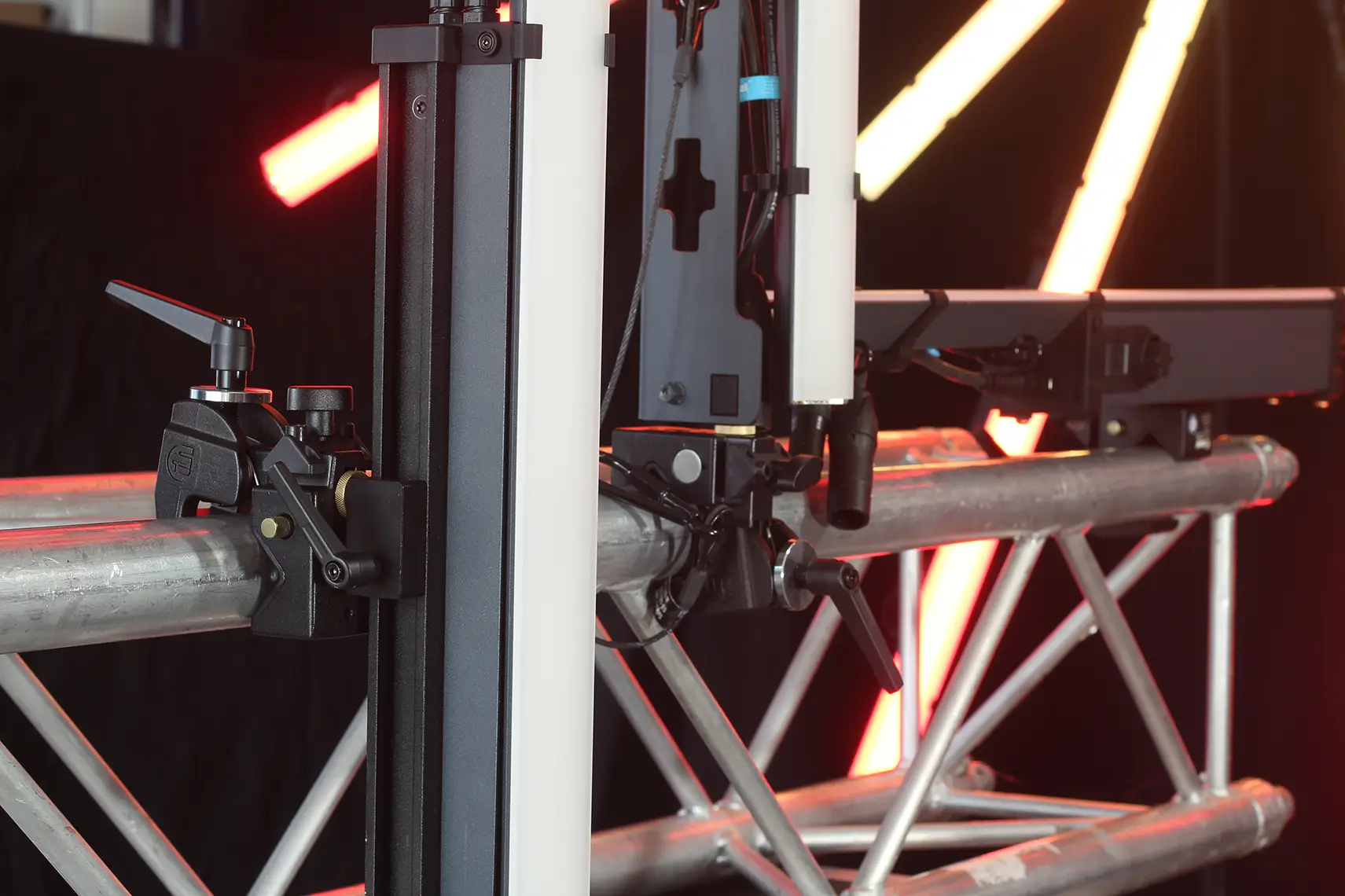

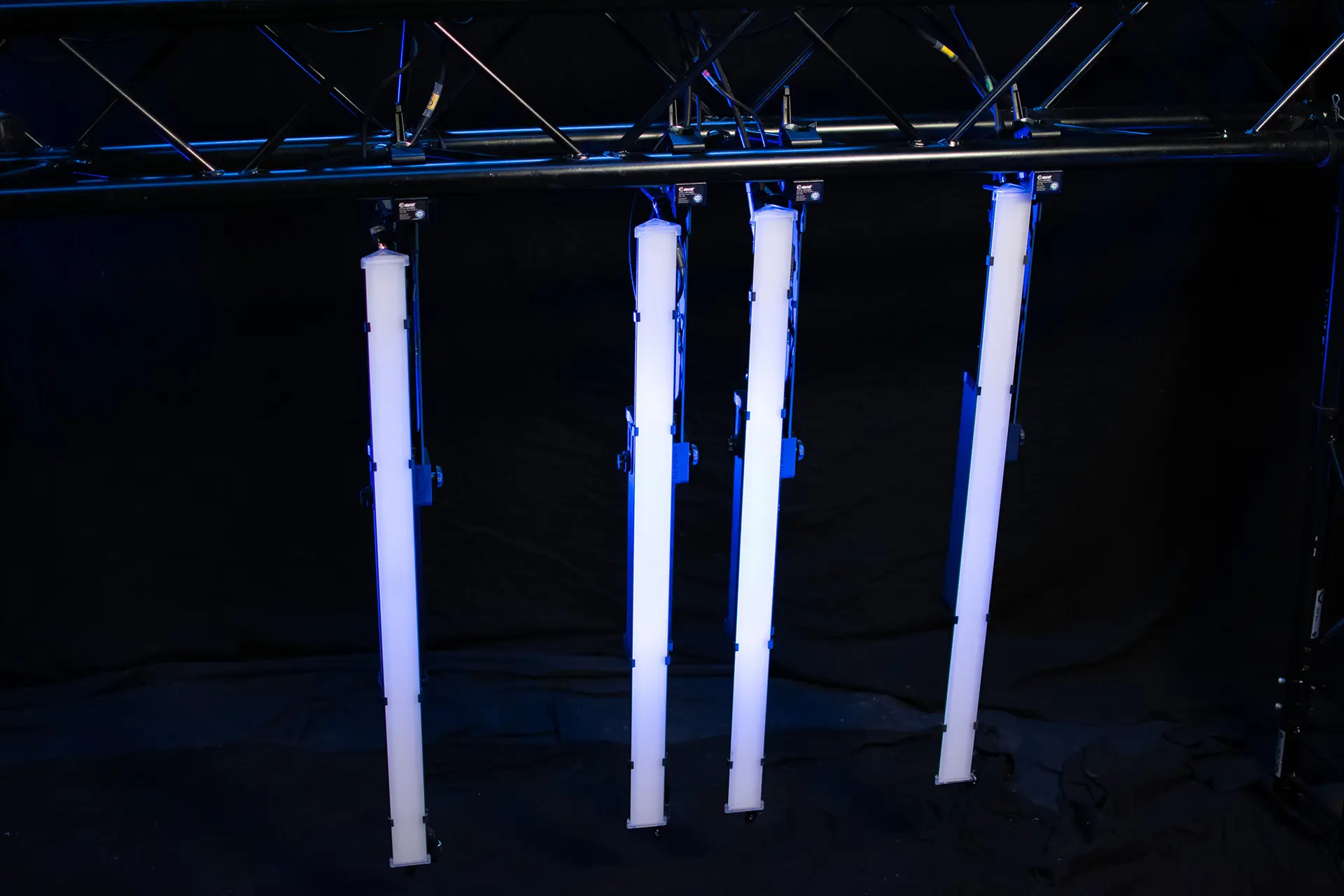

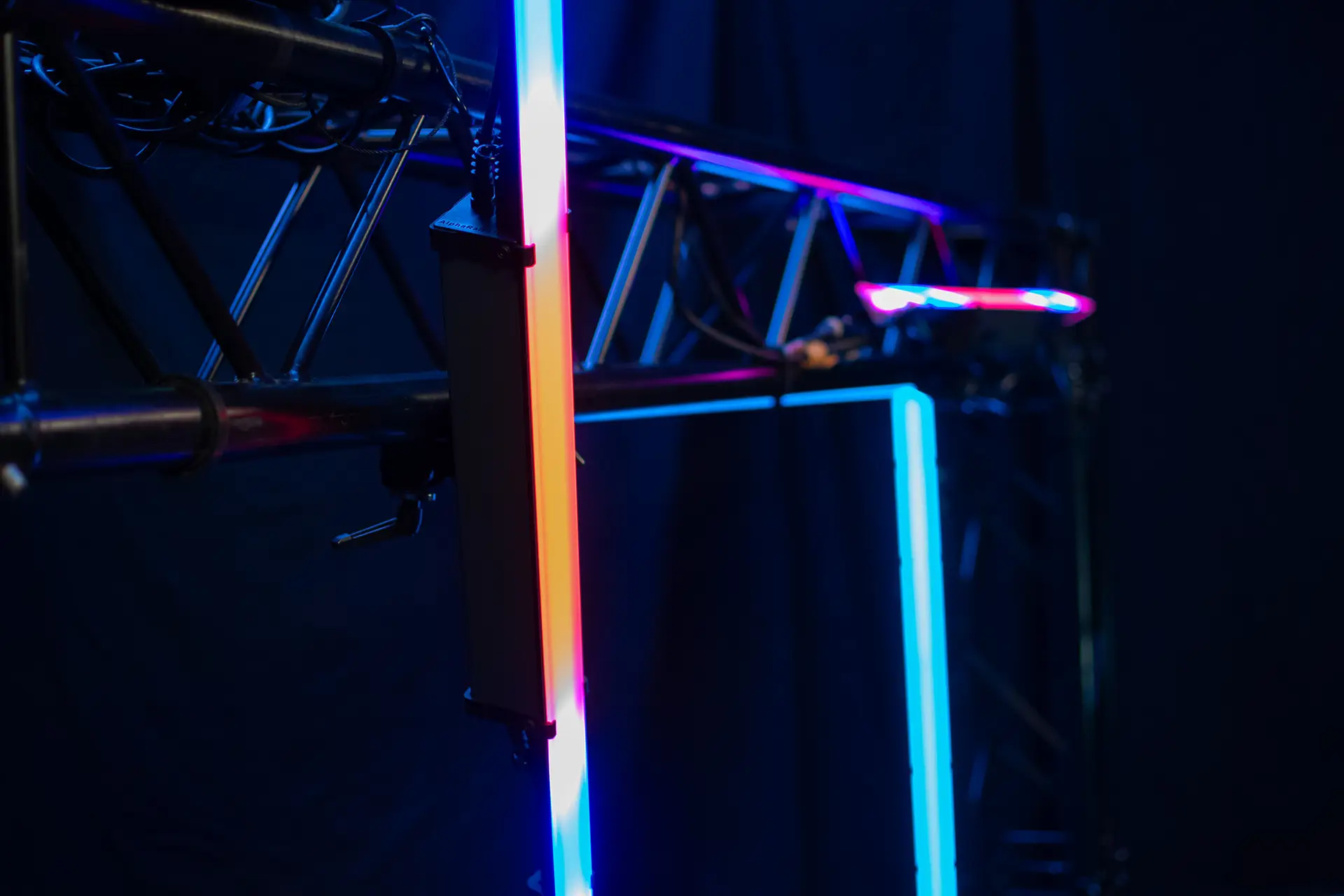

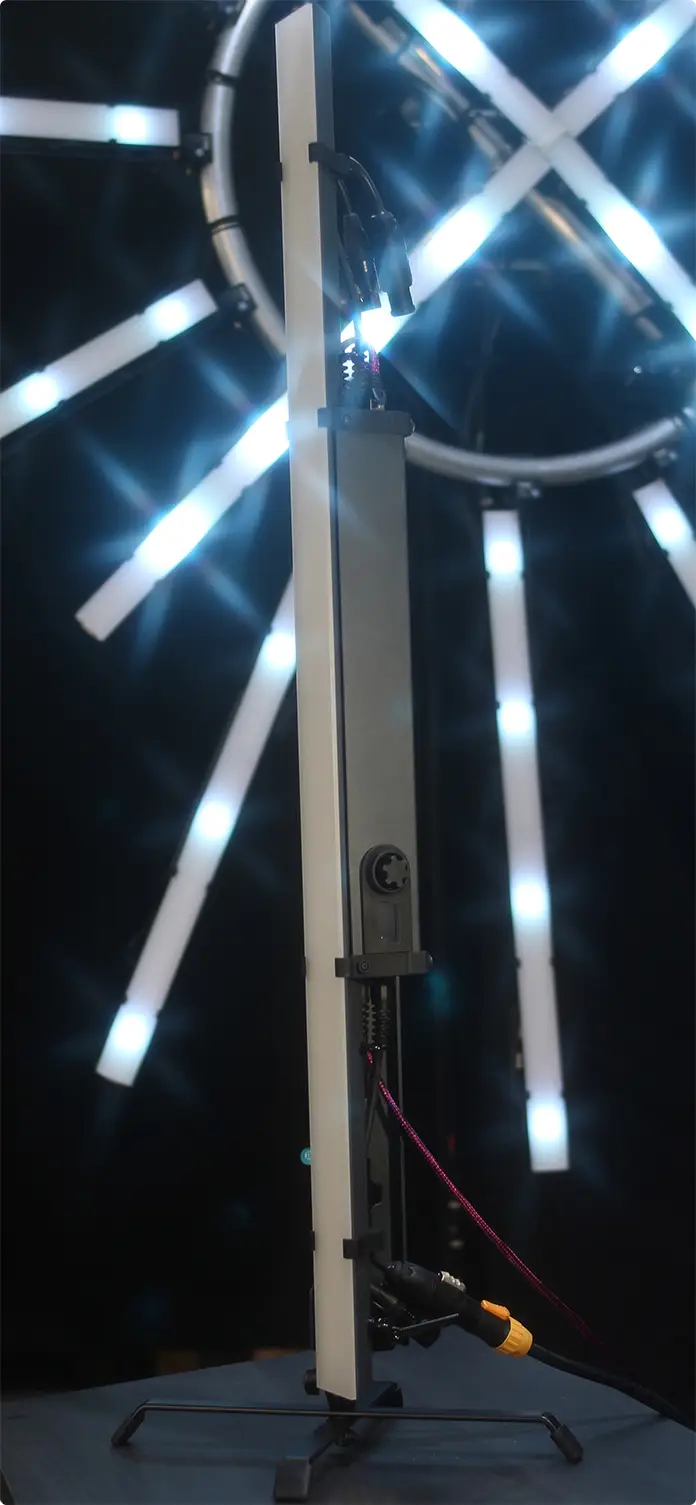

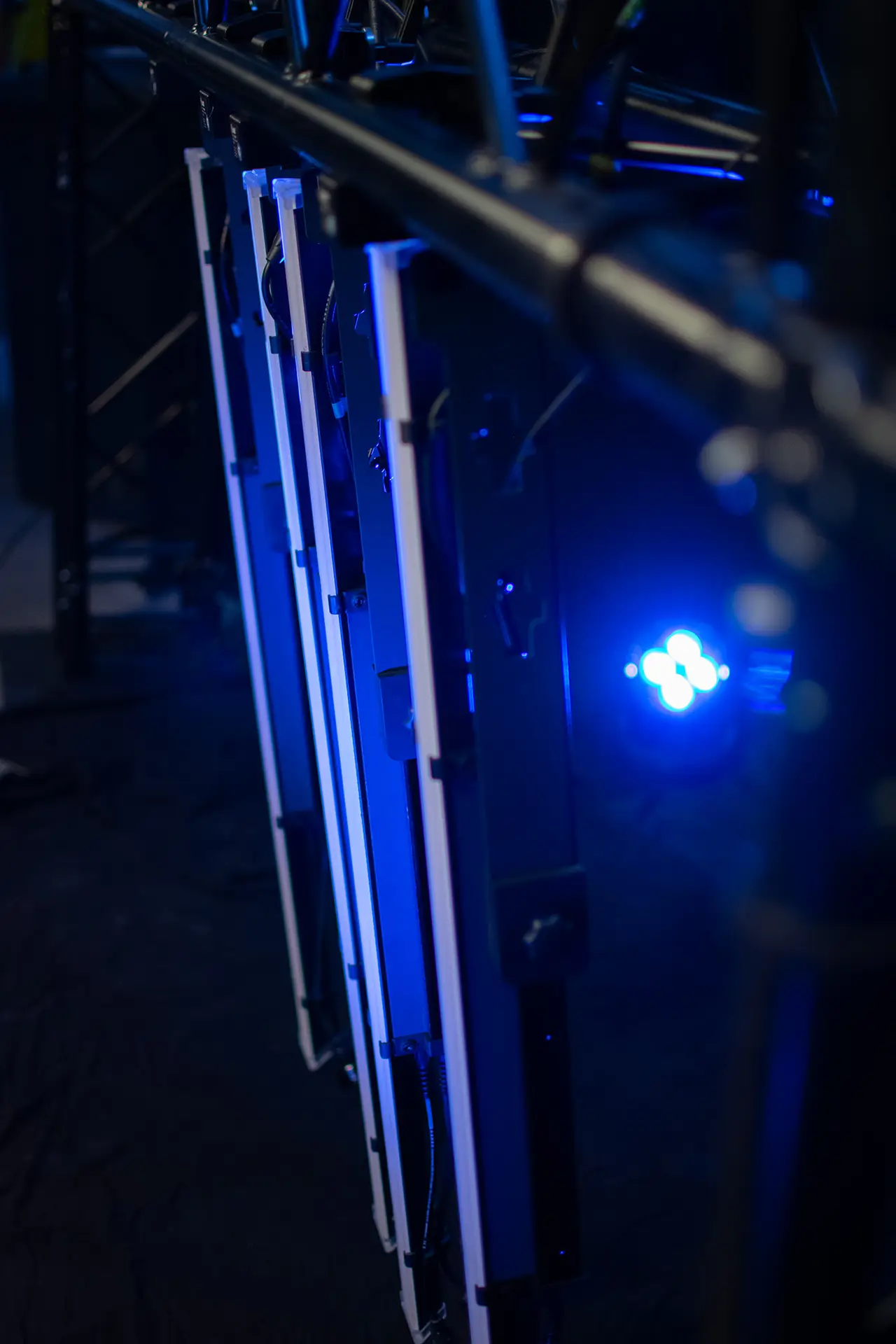

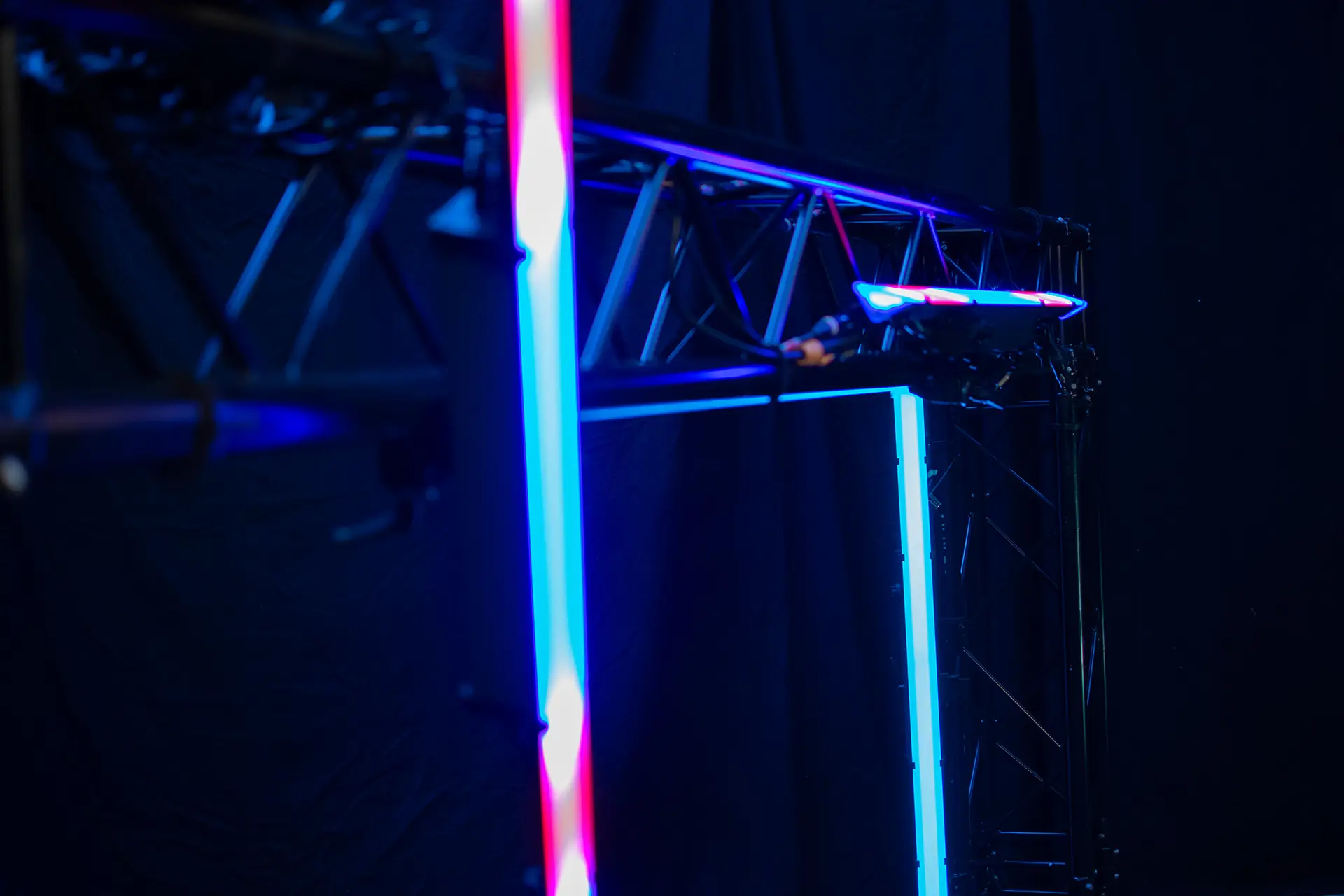

Features the new RIGRAIL system for seamless mounting on truss structures. With HangConnect and FloorStand (0° / 45°) there are endless possibilities. Horizontal, vertical, angled. Hanging, standing, lying. - Energy Saving
Low Power Consumption of 65W, daisy-chain up to 10 devices. Thermal Guard with Automatic Thermal Protection. - Intuitive Menu (U1k exclusive)

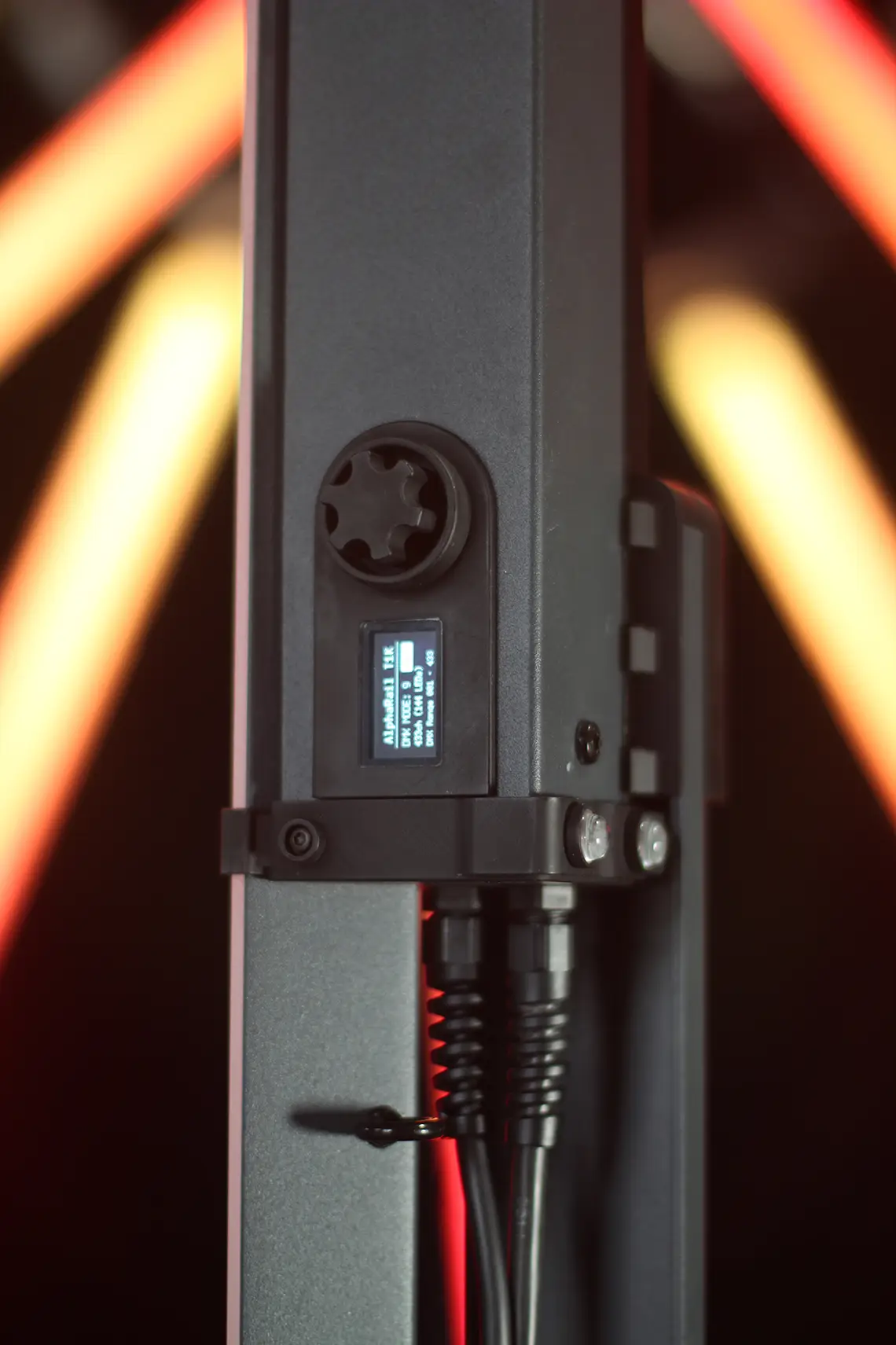

The High-Res Rotary Encoder with integrated Push-Button navigates super fast through the IntelliSetup Fixture Menu. Changes are shown on a High Contrast Monochrome OLED Interface Display.
Tech Specs
AlphaRail I1k/U1kTechnical Specifications
Design & Build
- L / W / H : 1006 mm / 86 mm / 80 mm
- Lightweight Design: 2.30 kg
- IP Rating: IP 20
Power & Cooling
- Power Supply: 220 – 240 V AC, 50/60 Hz
- Power Consumption: 65 W
- Power-IN: Powercon True1 M / Power-OUT: Powercon True1 F
- SilentFlow DustFree Cooling System
Fanless Convection / Zero Noise Operation / Dust-Free Design - ThermalGuard – Automatic Thermal Protection
Optics & Output
- High-Output SMD5050 RGB Pixel Array
– 432 x SMD5050 3in1 TCL RGB / Beam Angle: 160° /(1405) lux @ 1m - Swappable Front Filter Glass
– White (Wash|Frost) / Black (Glossy|Matt) / Transparent
Control & Connectivity
- DMX-IN: 5-pin XLR (M) / DMX-OUT: 5-Pin XLR (F)
- Advanced Strobe Engine
– Standard / Random Full / Segment Random /Instant Dance Flash Effects - controlable via sACN, ArtNet
- RDM Ready – Discover, Address & Configure via any RDM Controller
Rigging

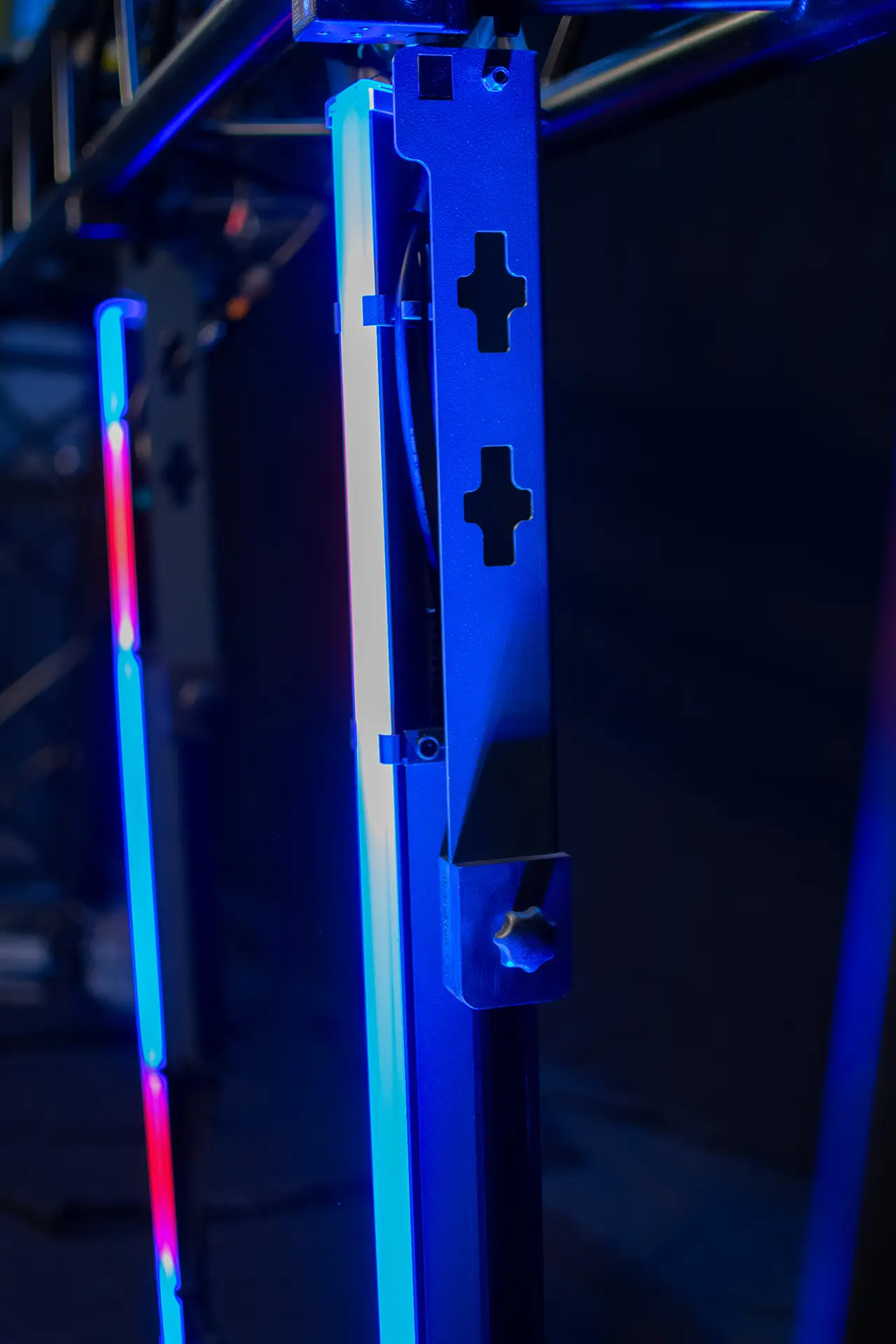

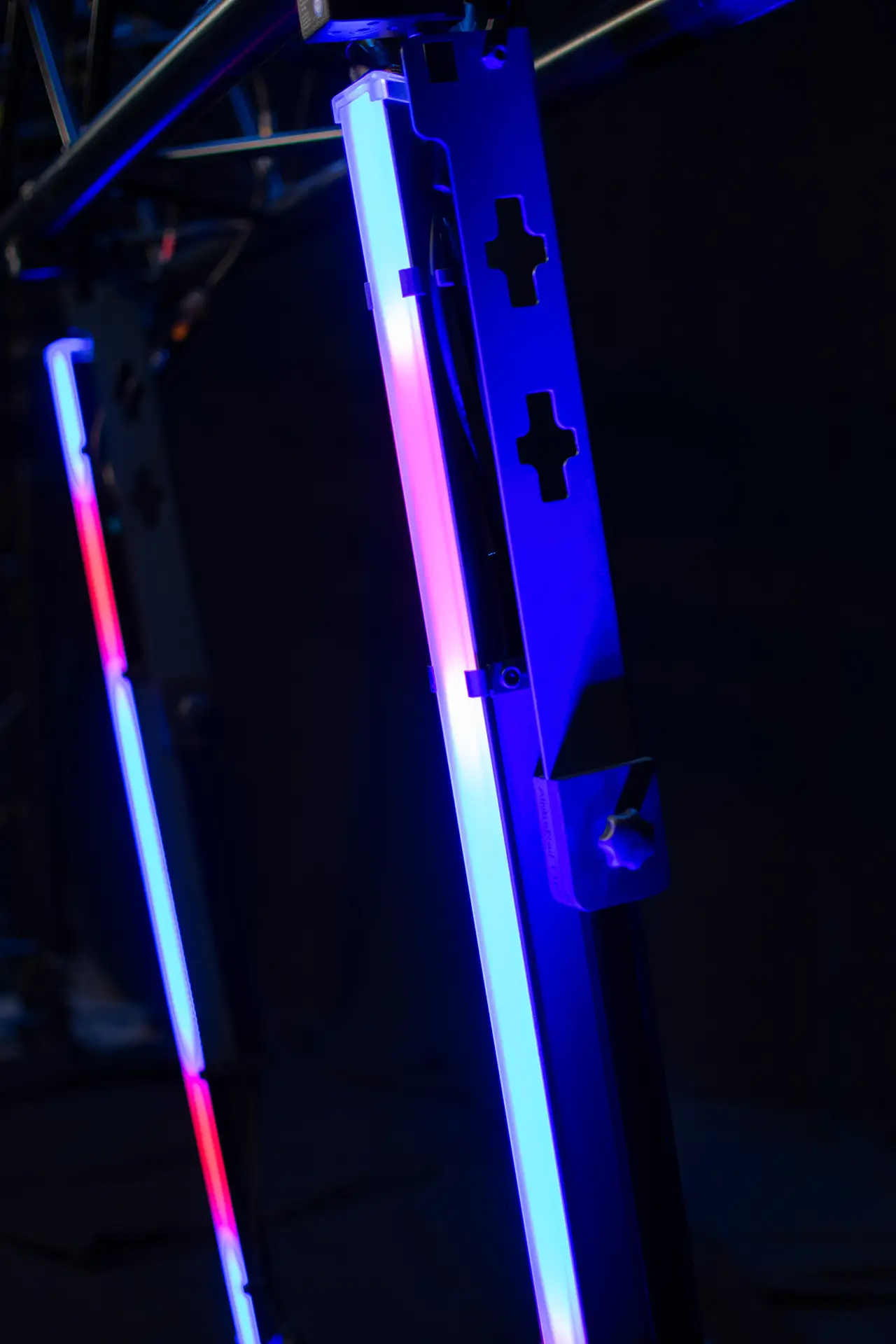

- RigRail Technology – Precision Rigging System
- HangConnect – Hanging Installation & Floor standing Mount
Choose Your Model … And Your Color!
Make it yours
U1k | Unique
This model shares the full performance core of the I1k but adds onboard control convenience with a High-Res Rotary Encoder and High Contrast OLED Display.
More importantly, the U1k allows for custom powder coating in your desired color and optional custom application on the diffuser panel, blending seamlessly into bespoke stage or set
designs.
Price available upon request
The workhorse for fixed installations.
I1k | Installation
Built for clubs, venues, and architectural integration where reliability is key.
This version offers the identical full-function LED engine and control feature set as the U1k, streamlined for remote management without the onboard display.
Starting at €495 net (list price)
Buy.Rent.Create.
The AlphaRail is engineered for the long haul – but we know that not every project requires a permanent investment.
That´s why we offer flexible rental options for our models.
Whether you´re gearing up for a weekend show, a festival run or a temporary architectural installation: we deliver the fixtures you need, when you need them. Fully tested, pre-configured and ready to rig.
And because we believe in long-term partnerships, rental customers enjoy the same level of support as buyers – including technical consultation, on-site assistance if needed and seamless integration with your existing infrastructure.
Short-term. Long-term. For a single event or an entire season.
We´ve got you covered.
We are
A small team with big standards and even bigger passion.
Amelie Moehle von Hoffmannswaldau
(COO)
Passionate lighting technician with a knack for connecting with industry experts. Always
on-site, making sure the light hits just right.
Marc Martin
(CTO)
Technical developer and tinkerer at heart.
The workshop is where ideas take shape – and where he feels most at home.
Filip Richartz
(CAO)
Strategic systems architect behind the screens. At the computer, turning complexity into seamless solutions.
The Story
Born from hands-on experience in the event technology industry, AlphaRail Company GmbH
is built by technicians, for professionals everywhere.
It all began in 2019 when our co-founders, Amelie and Marc, joined forces on lighting installation projects.
Frustrated with the recurring “teething problems” of conventional gear, they set out to develop a product that simply worked—reliable, intuitive, and engineered for real-world use.
Their vision took shape in the AlphaRail.
Filip, also a seasoned technician from the same network, soon came on board, and together they turned a shared passion into a company. By the end of January 2026, AlphaRail Company GmbH was officially founded.
Today, we combine hands-on technical expertise with in-house innovation—offering not only our own LED fixtures but also the services that make a production succeed: skilled technicians, seamless installations, and creative support.
Looking for more than hardware?
We are.
That´s why we offer more than just great fixtures.
Our full-service solutions cover everything it takes to make a production shine – from the first sketch to the final curtain.
Whether you need:
- Experienced technicians to operate your show
- Installation teams for permanent or temporary setups
- Creative consulting to bring complex ideas to life
We can provide the right people and expertise.
You bring the vision; we help make it happen.
We work with you – whether you´re using our gear, integrating it with your existing inventory or
simply looking for reliable hands on deck.
Because at the end of the day, great technology is only half the story.
